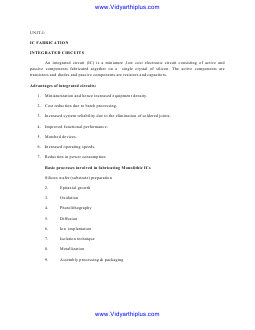

EE2254 LIC Lecture Notes.png (13.16 KiB)

[/b]

Anna University , Chennai

Department of B.E-Electrical and Electronics Engg

Fourth Semester

EE2254 Linear Integrated Circuits And Applications

Lecture Notes - All Units

(Regulation 2008)

INTEGRATED CIRCUITS

An integrated circuit (IC) is a miniature ,low cost electronic circuit consisting of active and
passive components fabricated together on a  single crystal of silicon. The active components are
transistors and diodes and passive components are resistors and capacitors.

Advantages of integrated circuits:
1. Miniaturization and hence increased equipment density.
2. Cost reduction due to batch processing.
3. Increased system reliability due to the elimination of soldered joints.
4. Improved functional performance.
5. Matched devices.
6. Increased operating speeds.
7. Reduction in power consumption
